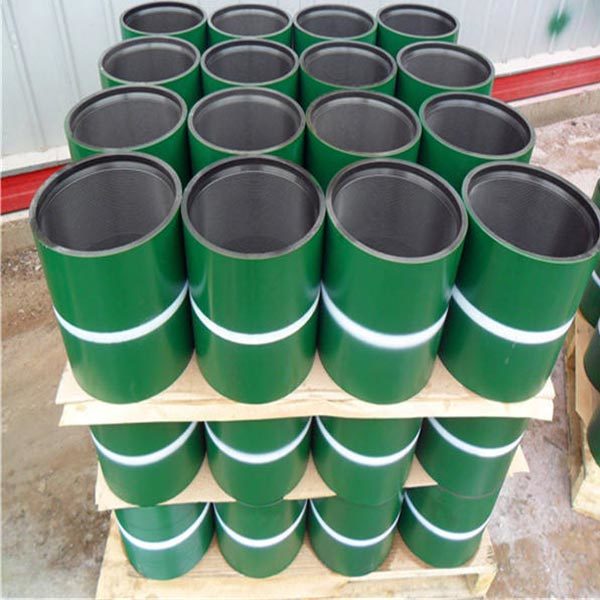

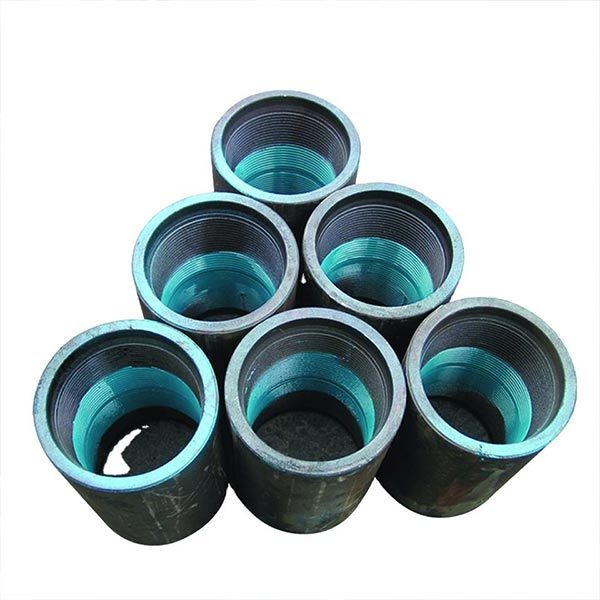

Product:Casing and Tubing Coupling, Casing Coupling, Tubing Coupling
Application:Used for connect 2 joints of tubing or casing
Size:Tubing Coupling : 1.9'' - 4-1/2''
Casing Couping : 4-1/2'' - 13-3/8''
Pipe Standard: API 5CT and 5B PSL1/PSL2 J55,K55,N80-1,N80-Q,API 5CT and 5B L80-1,C90, C95,T95, P110, Q125
Surface:Whole Phosphating or inside phosphating and outside coating
Thread:NUE, EUE, STC, LTC, BTC etc

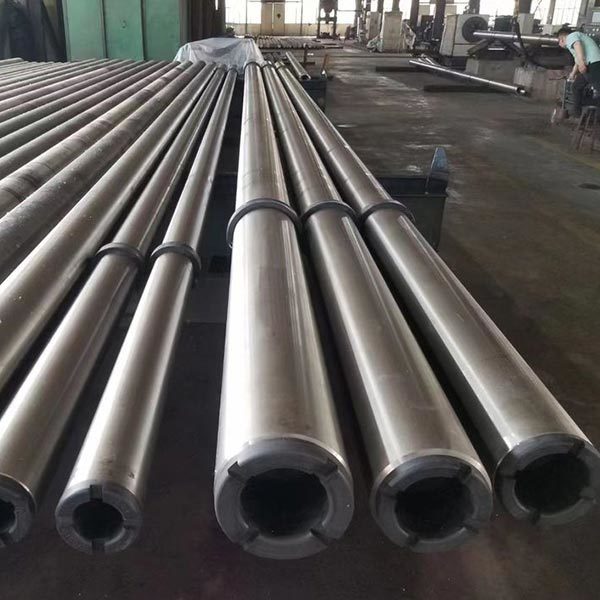

Product: Drill Collar
Standard:API SPEC 7-1
Steel grade:AISI 4145H
Sizes:3 1/8" -- 11"
Connected Type:NC, IF, REG
Application: Used for Mine, water well drilling, well drilling, coal and fore poling

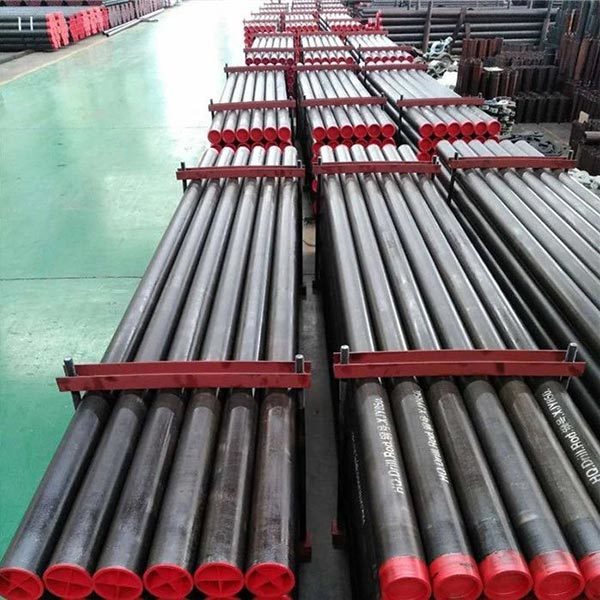

Size:OD: 60.32mm-168.28mm,WT: 6.45-12.7mm,LENGTH: R1, R2, R3
Pipe Standard:API 5DP E75, X95, G105, S135
Upset Style:IU, EU, IEU
Connection:NC26 - NC50, 5 1/2FH, 6 5/8FH
Internal coating:TK34,TC2000, Arnco 100XT, 200XT, 300XT

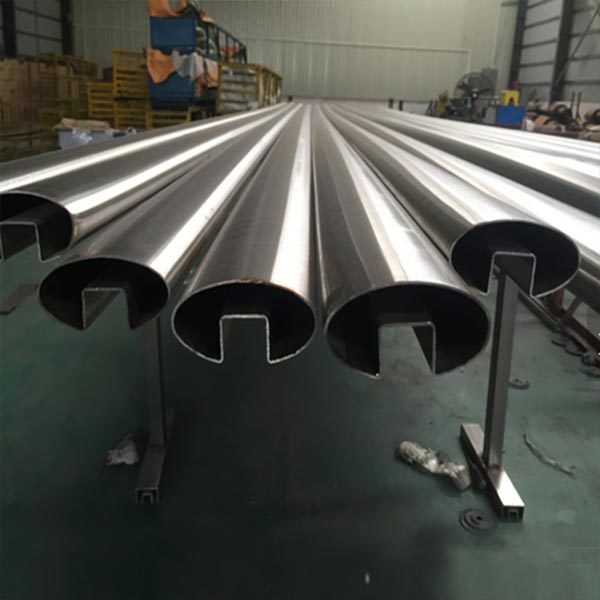

Application: Used as Walls Structural Retainers and Screen Pipes for Oil, Gas and Water Wells
Specification: OD: 50mm - 500mm;WT: less than 20mm;LENGTH: less than 15m
Slot&Holes Specification: as customer require
Standard & Grade: API , API5CT J55/K55/N80/C75/L80/C90/T95/Q125
Process Type: Seamless (SMLS), Electric Resistance Welded (ERW)
End: Plain, Beveled, Square Cut, With LTC/STC/BTC Connection
Surface: Anti-corrosion&water Painting
Packing: Protection Caps in Both Ends, Waterproof Paper Wrapped
Dimension range (OD inch): 1-1/2”----4 1/2”
Dimension range (OD mm): 26.67----114.3
Type of upset: NUE, EUE, Plain end.
Standard: API SPEC 5CT
Main Steel Grade: H40, J55, N80, N80Q, L80, L80-1, L80-9Cr, L80-13Cr, P110 etc.
Type of Tubing: Non-upset tubing (NU), External-upset tubing (EUE), Integrated Joint (IJ).

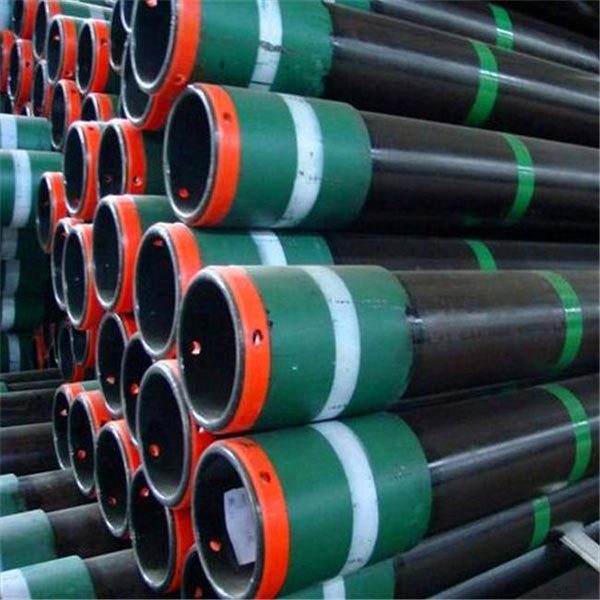

Application：Oil well casing serves as well sidewall
Pipe Standard：API SPEC 5CT
Size：OD: 114.3-508mm,WT: 5.21-16.13mm
Process Type: Seamless (SMLS), Electric Resistance Welded (ERW)
Grade: J55, K55, N80-1, N80-Q, L80-1, L80-9Cr, L80-13Cr,C95, P110.
Thread types:STC, LTC, BTC etc
